Ionic Lithium 12V 100Ah S12M | 1280 CA | LiFePO4 Marine Starter Battery

Sale price $699.00 Regular price $899.99
On Sale

Shipping calculated at checkout

In stock

Ionic Lithium 12V 100Ah S12M | 1280 CA | LiFePO4 Marine Starter Battery

  • Starts your outboard every time. Weighs 49 lbs less than the battery it replaces. Monitors itself from your phone.

    • 1,280 Cranking Amps — compatible with all major brands – starts standard 12V marine outboards with ease.
    • 800 Cold Cranking Amps (3 sec, tested at 0°F) — reliable cold-weather starts
    • 25.9 lbs — about 49 lbs lighter than a comparable lead-acid Group 31
    • Group 31 drop-in — fits your existing battery tray, no wiring changes
    • Bluetooth via free Ionic Red Battery app (iOS & Android) — check charge level from your phone
    • Built-in Emergency Start — long-press the button or tap the app; no jumper cables needed
    • Built-in self-heater — activates automatically below 32°F; Accepts a charge even in cold climates
    • 5-year full replacement warranty — backed by US-based support
  • pplication.

Product Description





5-Year Warranty
Full replacement — not pro-rated, not depreciated

Built-in Bluetooth
Free — iOS & Android, monitor your battery in real time

Free Shipping
On all US orders $150+

US-Based Support
M–F 9AM–5PM EST



1,280 CA
Cranking amps (3-sec burst)

25.9 lbs
~49 lbs lighter than lead-acid

Ionic Batteries App
Monitor charge from your phone

Emergency Start
Built-in 25% reserve backup — no jumper cables needed





Most lead-acid boat batteries fail every 2–4 years. Most pontoon owners replace them twice before they sell the boat.

This is a 1,280 cranking amp LiFePO4 starter battery that weighs 25.9 lbs — about 49 lbs lighter than the lead-acid Group 31 it replaces. Drop it in your existing battery box. No wiring changes. Comnpatible with all major brands.

It also does three things your current battery can’t:

  • Monitors itself. The Ionic Red Battery app shows your battery’s charge level from your phone — check it from your truck before you back the boat down the ramp.
  • Heats itself in winter. The battery management system (BMS) activates an internal heater below 32°F automatically so that it can accept a charge even in cold climates. Leave it in the boat all winter. Turn the key in the spring.
  • Backs itself up. If your charging system fails on the water, long-press the Emergency Start button or tap it in the app to activate a built-in reserve that cranks the motor. No jumper cables. No tow bill. Peace of mind wherever you are. Just press the button on the battery to activate or use your phone to access the app.

Covered by a 5-year full replacement warranty. Backed by US-based support. Most owners will sell the boat before they need a new battery.

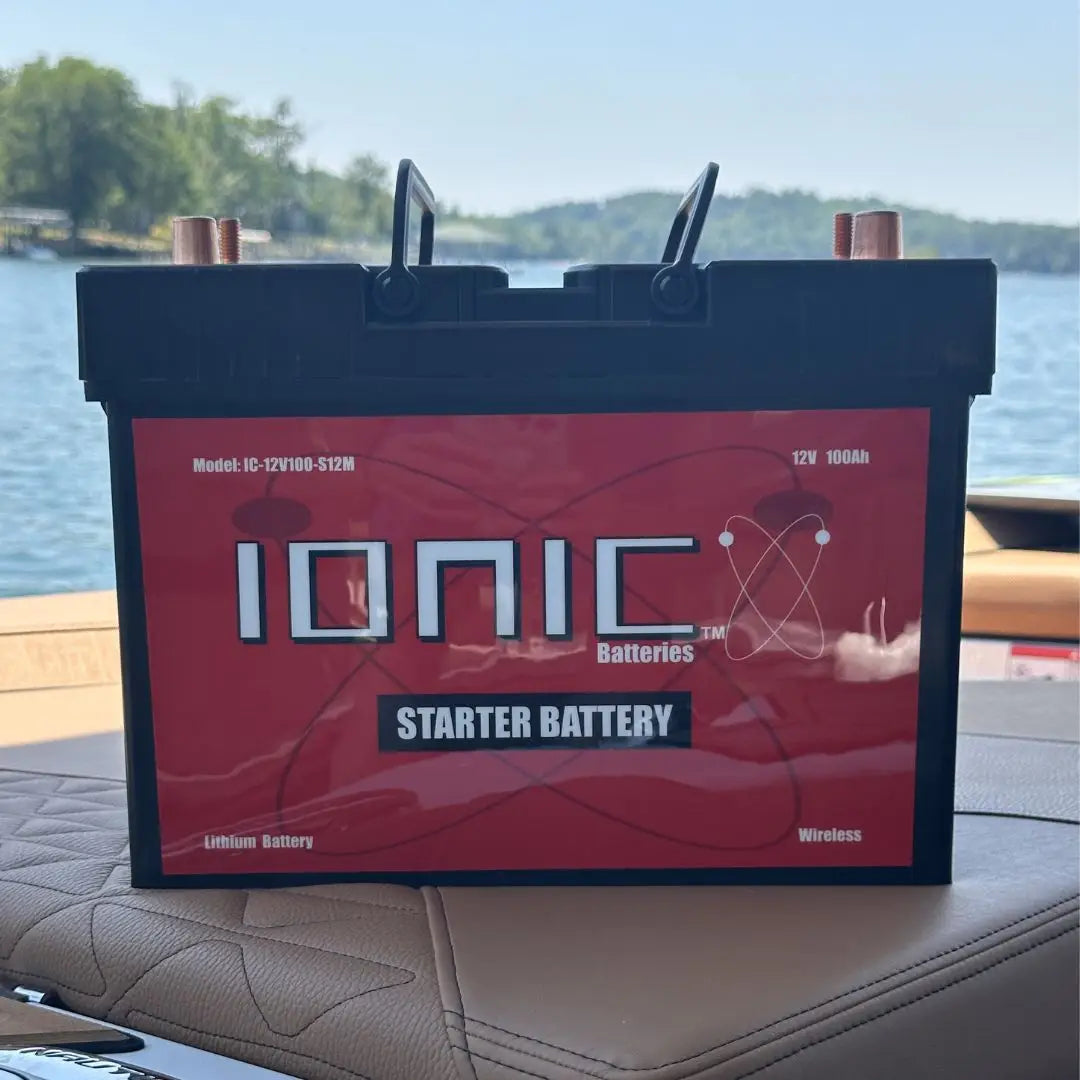

Ionic S12M LiFePO4 marine starter battery on pontoon boat







1,280 Cranking Amps

Starts standard 12V marine outboards including all major brands, even on cold mornings. CCA: 800A tested at 0°F.

25.9 lbs vs. ~75 lbs

Nearly 50 lbs lighter than a comparable lead-acid Group 31. Same Group 31 footprint — drops in without modification.

Bluetooth Monitoring

Ionic Red Battery app (iOS & Android, free, no subscription). Check your battery’s charge level from your phone using built-in bluetooth technology — from the dock, from the truck, before you ever touch the key.

Emergency Start Reserve

Long-press the red button or tap the app. A dedicated reserve activates to crank the motor when your charging system fails. Handles the failures that actually happen on the water.

Built-In Self-Heater

The BMS activates an internal heater below 32°F automatically so that the battery can accept a charge even when it’s below freezing. Leave it in the boat all winter with no issues.

5-Year Full Replacement

Full replacement warranty — not pro-rated, not depreciated. US-based support available M–F, 9AM–5PM EST.

Specifications

Ionic Lithium Starter Battery 12V 100Ah

ELECTRICAL SPECIFICATIONS
Nominal Voltage 12 V
Nominal Capacity 100 Ah
Energy 1,280 Wh
Resistance ≤20 mΩ
Efficiency 99%
Self Discharge <3% per Month
Maximum Modules in Series 4
MECHANICAL SPECIFICATIONS
Dimensions (L x W x H) 13 x 6.8 x 10″
330 x 175 x 256 mm
Weight 25.9 lbs (11.75kg)
Terminal Type 2x 3/8-16 NMC + 1 car post
Terminal Torque 80 – 100 in-lbs (9 – 11 N-m)
Case Material ABS
Enclosure Protection IP56
Cell Type – Chemistry Prismatic- LiFePO₄
TEMPERATURE SPECIFICATIONS
Operating Temperature -4°F~140°F (-20°C~60°C)
Charge Temperature 32°F~140°F (0°C~60°C)
Storage Temperature 32°F~140°F (0°C~60°C)
BMS High Temperature Cut-Off 185°F (85°C)
Reconnect Temperature 158°F (70°C)
DISCHARGE SPECIFICATIONS
Maximum Continuous Discharge Current 500 A
Cranking Amps 1,280 A (3sec)
Cold Cranking Amps 800 A (3 sec)
Low Discharge Cut-Off Voltage 8 V
Low BMS Cut-Off Voltage 11.2 V
CHARGE SPECIFICATIONS
Recommended Charge Current 50 A
Maximum Charge Current 200 A
Recommended Charge Voltage 14.6 V
Charge Voltage Cut-Off 15.2 V
Reconnect Charge Voltage 14.4 V
COMPLIANCE SPECIFICATIONS
Certifications CE (battery)
UN38.3 (battery)
UL1642 & IEC62133 (cells)
Patent No. US9412994, US9954207, US11,598,306 B2
FEATURES
BlueTooth APP
Built in Emergency Start function that can be activated either by long pressing the start button or with the “IonicRedBattery” App
Built-in heating – if charging below 32°, the heater will turn on and warm the battery to allow a charge to be accepted



Model IC-12V100H-S12M
Voltage 12V
Capacity 100Ah
Water Rating IP56
Weight 25.9 lbs (11.75 kg)
Dimensions 13" (L) × 6.8" (W) × 10" (H)
330x173x254 mm
